Specifications (Per SAE):
- Lumens: 2,480 Utilizing 4 LEDs
- Wattage/Amps: 22W / 1.6A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)
Specifications (Per S2 Sport):
- Lumens: 1,130 Utilizing 2 LEDs
- Wattage/Amps: 12W / .9A LED
- Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Baja Designs Features:
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color

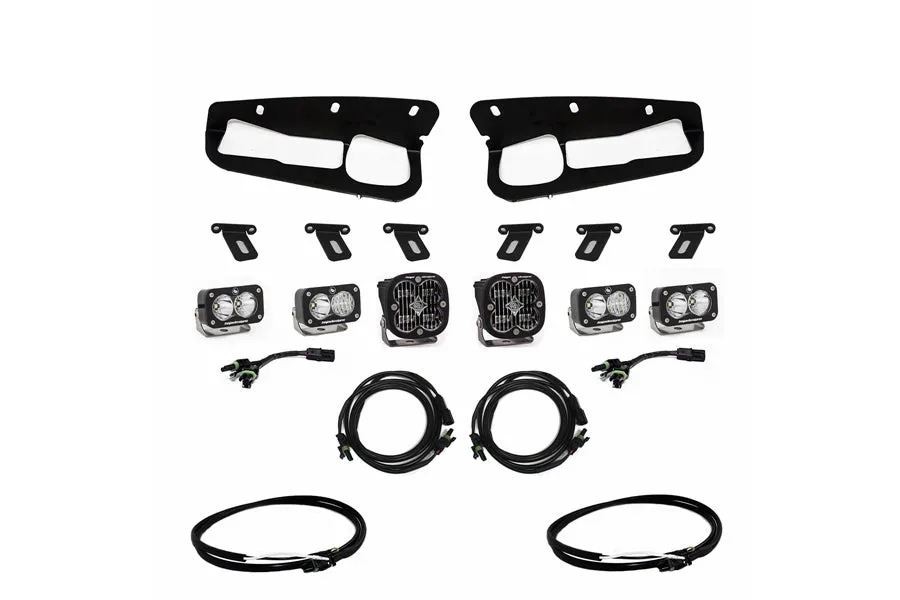

Included:
- S2 Sport, Driving/Combo Pair
- S2 Sport, Spot Pair
- Squadron SAE, Clear Wide Cornering Pair
- x2 Bracket Fascia Pieces
- x6 Light Mounts
- x2 Upfitter Harnesses
- x2 55" Splitters
- x2 small Splitters

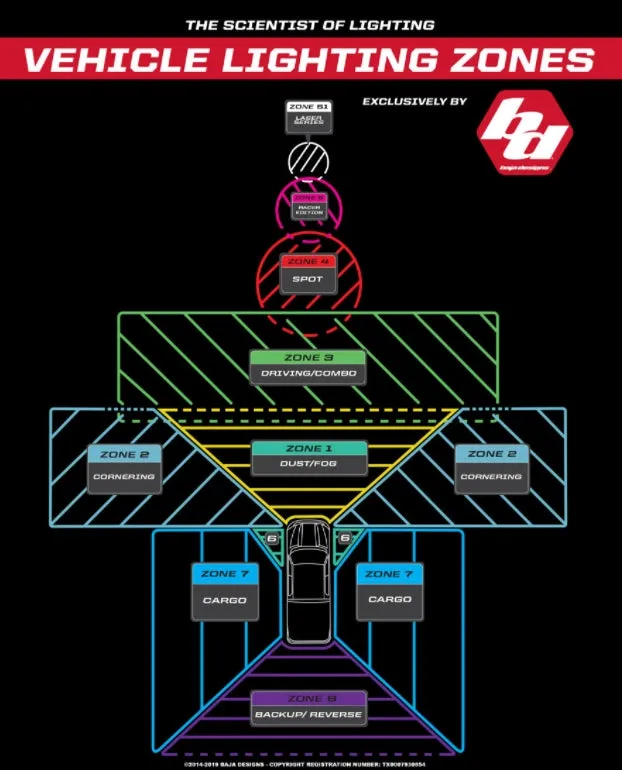

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
NOTE: Will not fit Bronco Sport
Dimensions:
Per SAE: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
Per S2 Sport:
2.93" x 1.76" x 1.68"
Weight: 8 ounces
