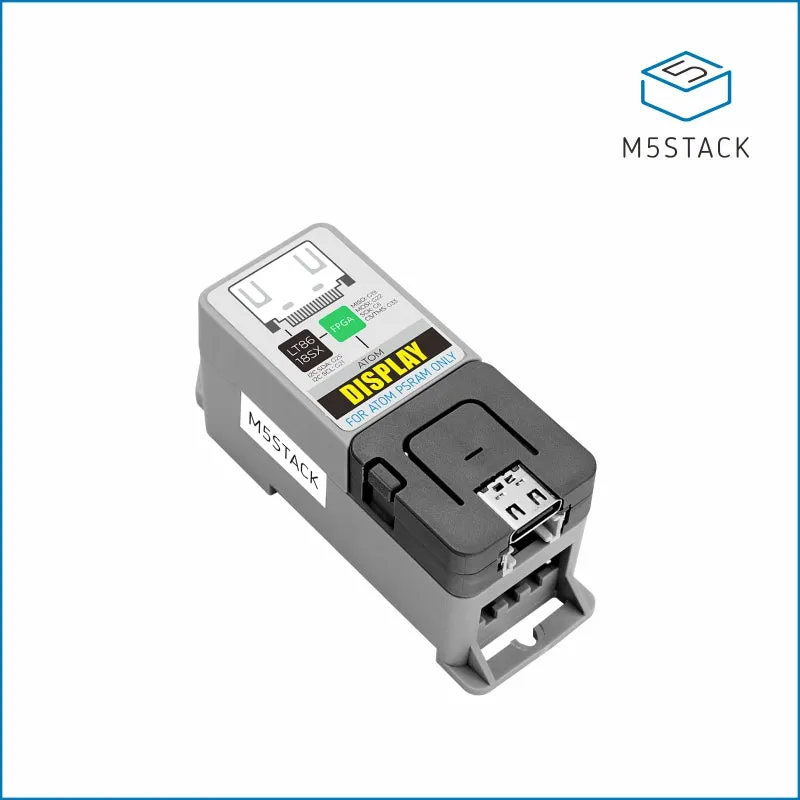

Description

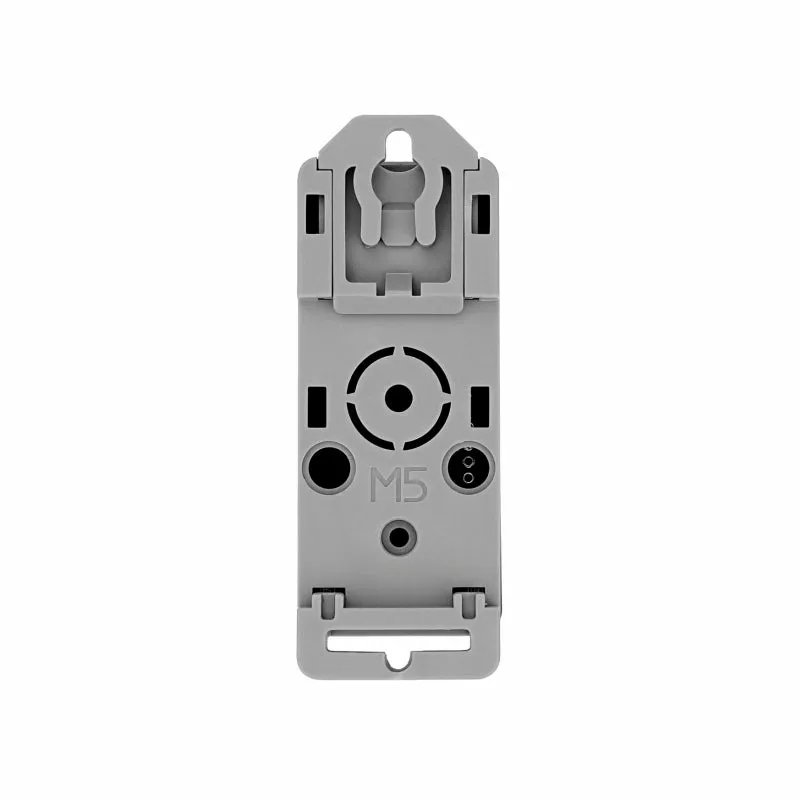

ATOM Display is an all-in-one display driver kit designed to provide a comprehensive solution for driving TFT-LCD displays. It utilizes an FPGA (Field-Programmable Gate Array) to simulate traditional SPI (Serial Peripheral Interface) TFT-LCD data output.

The kit supports a maximum image resolution of 1280 x 720 pixels, enabling high-quality visuals on compatible displays. It offers advanced signal processing capabilities, resulting in precise and vibrant colors for an enhanced viewing experience.

In addition to display functionality, ATOM Display integrates several other features. It includes 2.4G Wi-Fi connectivity, which allows for wireless communication and data transfer. With 8M Flash 2M PSRAM memory combination, it provides ample storage for storing image data and other resources. The kit also incorporates an RGB to HDMI converter chip, enabling easy conversion of RGB signals to HDMI output.

Despite its small size, ATOM Display packs powerful capabilities, making it a versatile and efficient alternative to traditional display driving solutions. By consolidating multiple functionalities into a single unit, it simplifies the integration process and reduces the need for additional components.

Note: ATOM Display needs to be paired with monitors with adaptive resolution scaling.

Product Features

All codes of FPGA and driver library are open-source

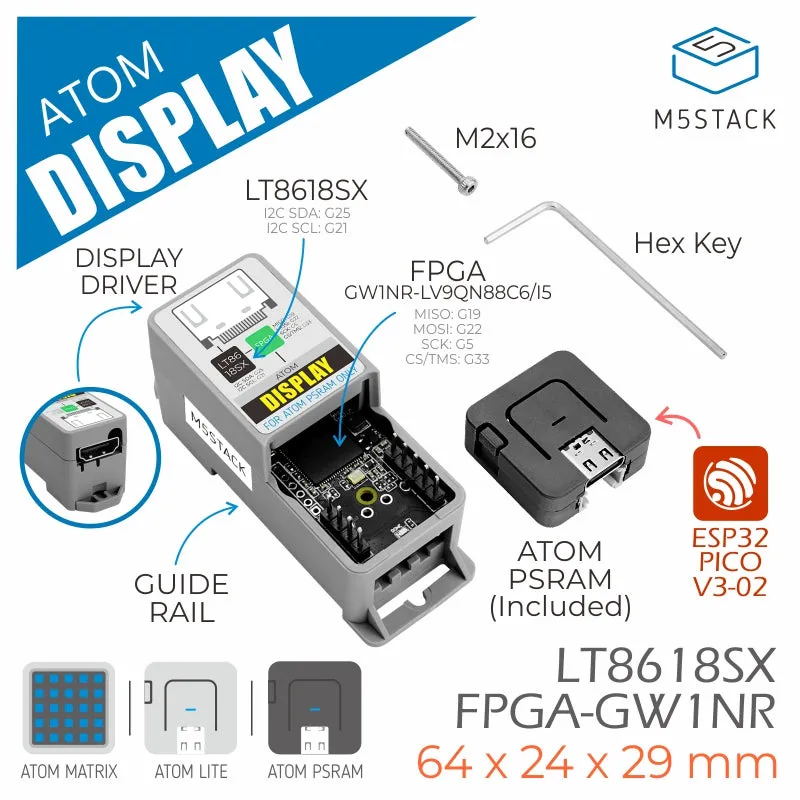

Use FPGA (Gowin GW1NR-9C) to simulate traditional SPI TFT-LCD Data output
Built-in LT8618SX RGB to HDMI chip (supports 24bit color depth)
SPI interface (FPGA) I2C interface (LT8618SX)
Maximum 720P (1280x720) image output
Multiple output modes, optimized frame rate up to 12 ~ 16FPS

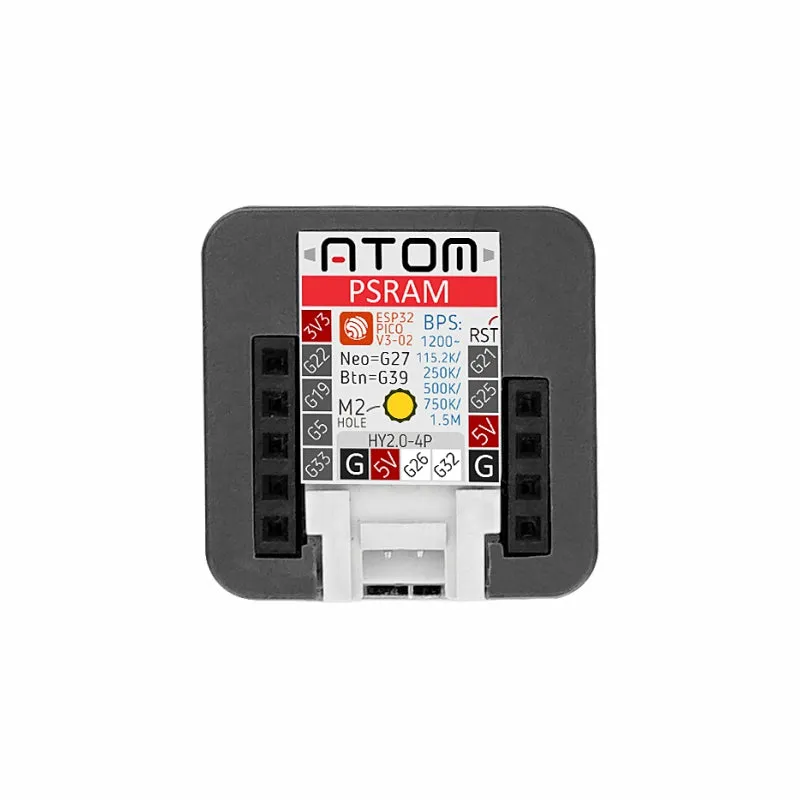

Built-in ATOM PSRAM main controller (ESP32-PICO-V3-02, 8M Flash 2M PSRAM)
Programmable RGB LED x1, reset button x1, button x1, Grove expansion port x1
Development platform: Arduino, ESP32-IDF, (UIFlow support coming soon)

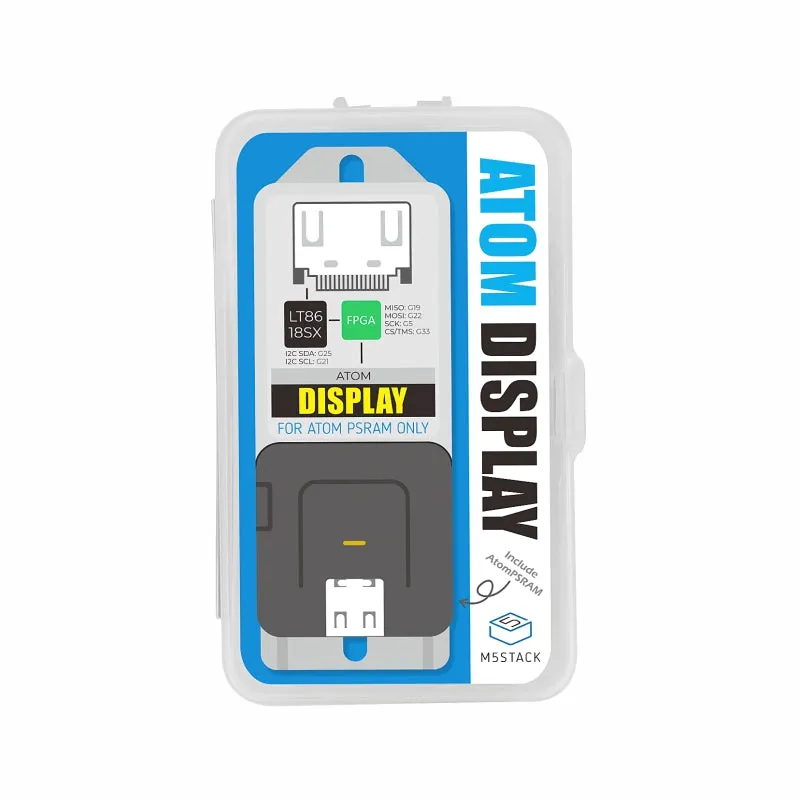

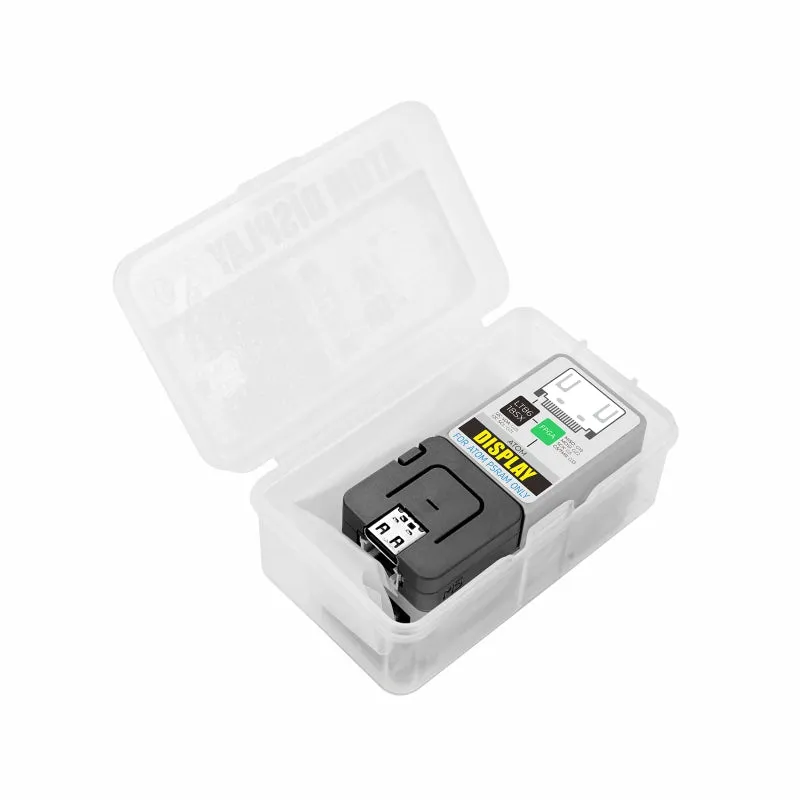

Includes

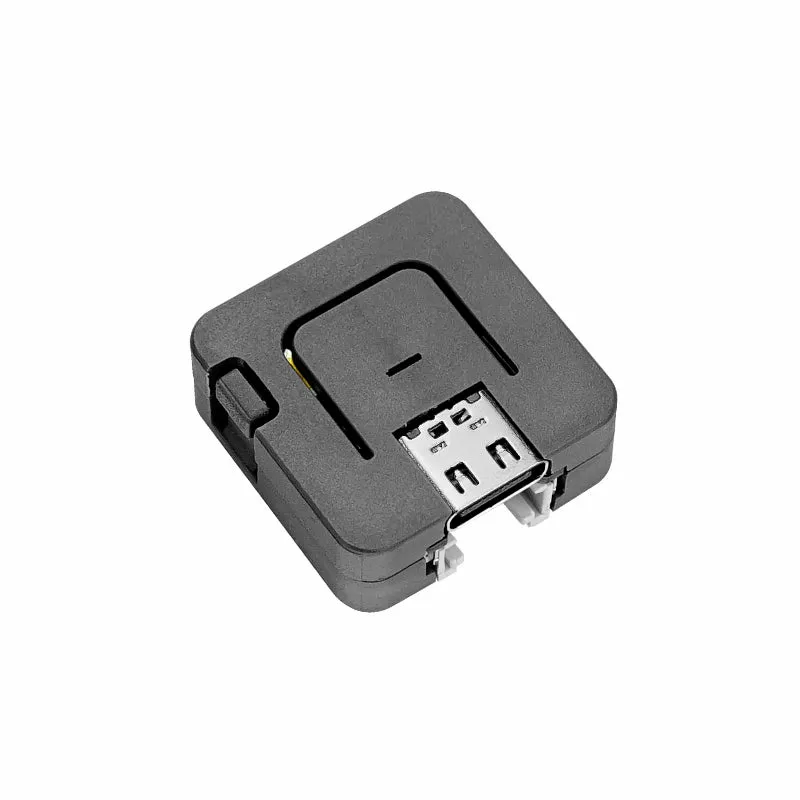

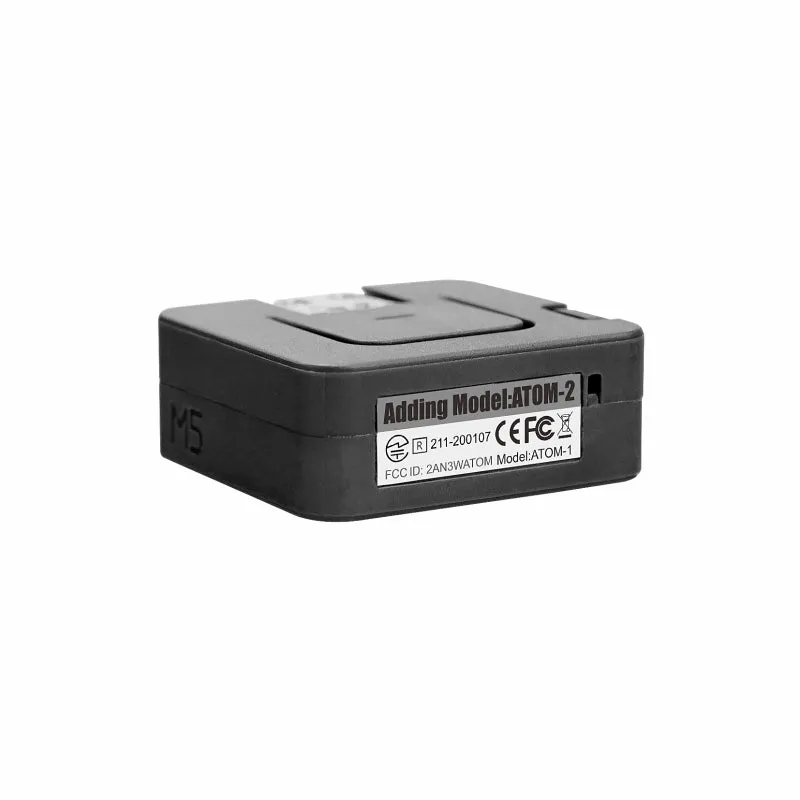

1x ATOM PSRAM

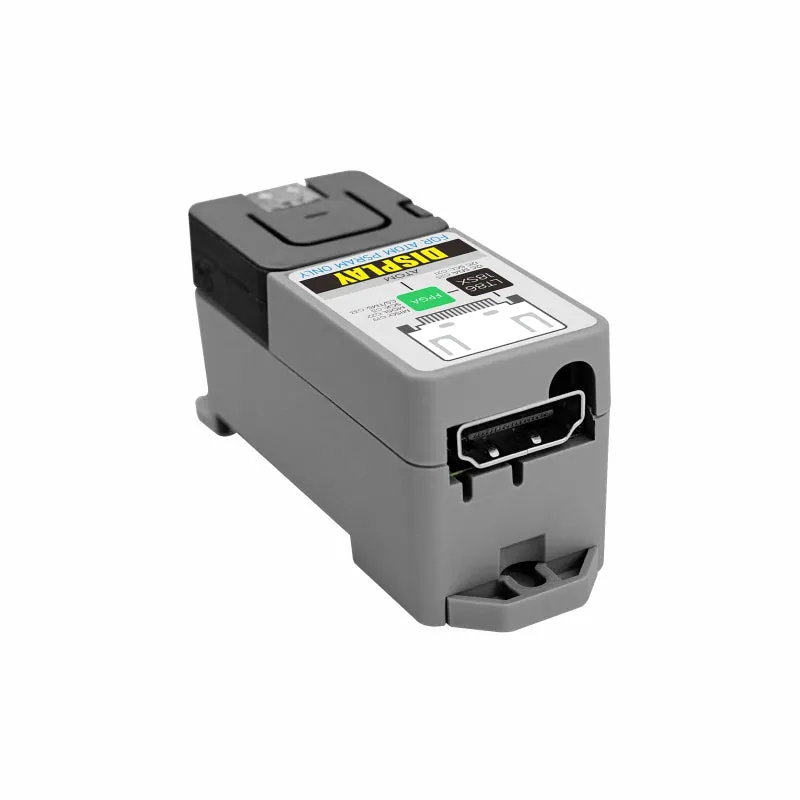

1x ATOM Display

Application

Display input signal source
HD Data Board

Specifications

Resources	Parameter
FPGA	Gowin GW1NR-9C
LT8618SX	RGB to HDMI chip, supports 24bit color depth
Maximum image output size	720P(1280x720)
Output frame rate	1280x720 60Hz
USB driver chip	CH9102
Net weight	21g
Gross weight	34g
Product Size	64 * 24 * 29mm
Package Size	76 * 46 * 29mm
